Piab BBL - Bakery bellow long (40mm)

The same applications as for short bellows but can cope with greater differences in levels due to the longer lifting movement. Not suitable for use with deep vacuum levels. Can be equipped with reinforcement rings of polyamide to give extra stability.

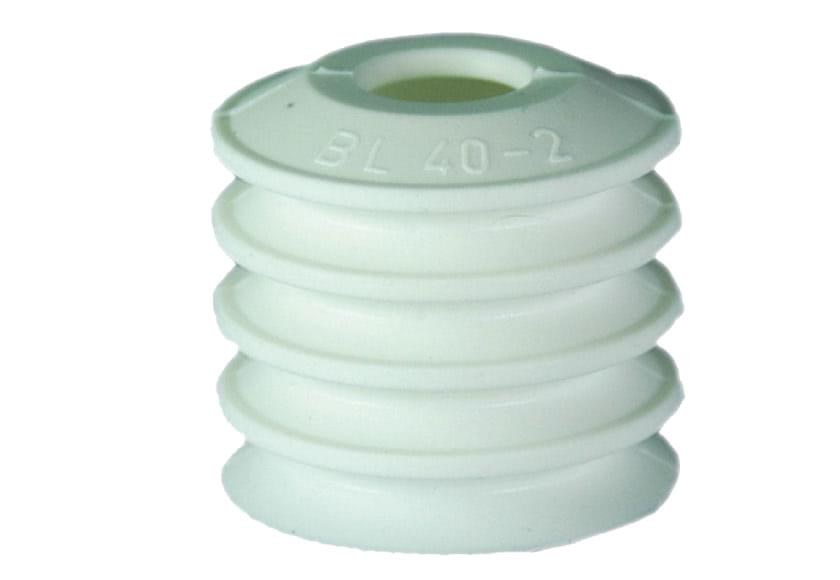

Piab B-BL40-2
Suction cup with long bellows

• Suction cup without fitting, specially designed for the food industry (bakery)
• Suitable for level adjustment
• Lifting movement to separate small and thin objects
• Less suitable when the lifting force is parallel to the surface of the object
• Optional reinforcement rings made of polyamide, part no. 31.50.073

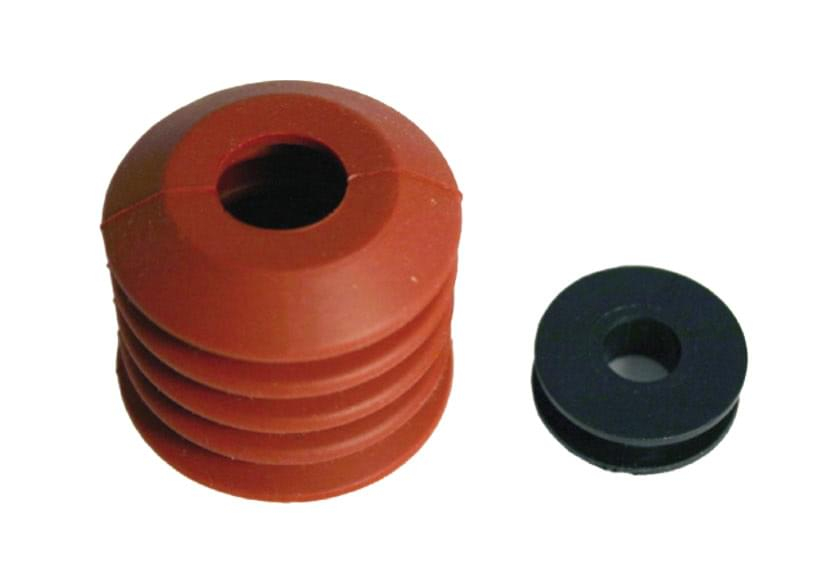

Piab B-BL40-2, detectable
Suction cup with long bellows

• Suitable for bakeries for use with handling seeded product
• A low percentage metal additive is mixed with the rubber material to make it detectable
• FDA-grade silicone material
• Suitable for level adjustment.
