Warner hydraulic clutches and brakes

Complete packaged clutch brake combinations for general purpose use or for integration with (electric) motor and load to form a complete assembly.

  • Electromagnetic or spring applied
  • Pre-assembled in our workshop
  • Standard torque range : 7,5 to 970 Nm


Individual clutches and brakes

  • Electromagnetic, hydraulic, pneumatic or mechanically operated
  • Finished bores and keyway’s machined in our workshop
  • Standard torque range : 1,7 to 81900 Nm


Spring applied electro release holding brakes

  • Pre-assembled in our workshop
  • Single and dual friction disc versions
  • Standard torque range : 5 to 25600 Nm


Compact and economic power supplies for all electric models

  • Normal excitation for standard operation and over-excitation for rapid cycling applications
  • Standard output voltages 24, 103.5 and 207 VDC

The normal service pressure for Warner Electric clutches and brakes is listed in the product tables. Different service pressures meeting your operating conditions can be used. In order to protect the gliding surfaces of the piston/cylinder the use of filtered hydraulic oil with 10 micron grade and a viscosity suitable to the operating conditions, is recommended. For the friction surfaces, use of an oil with a viscosity up to ISO VG46 and compatible for use with sintered bronze is recommended.

loading...

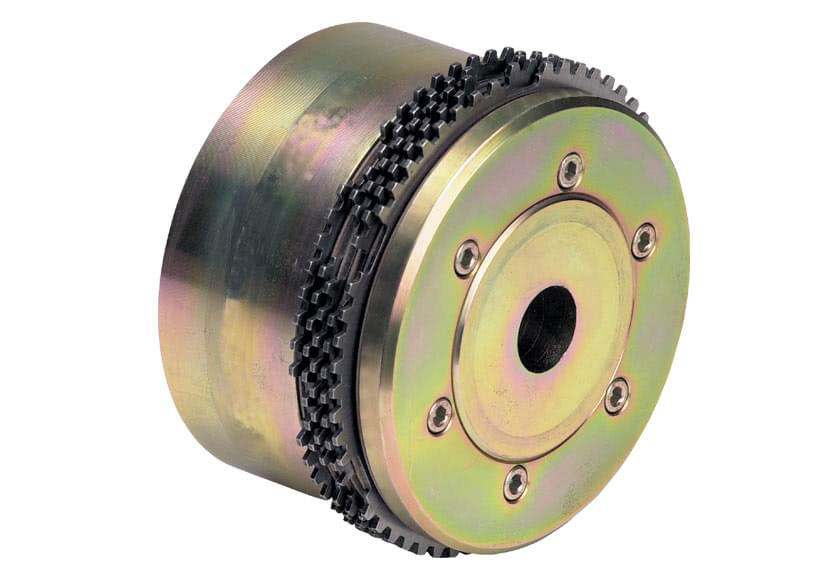

  • Warner hydraulic brakes series H110
