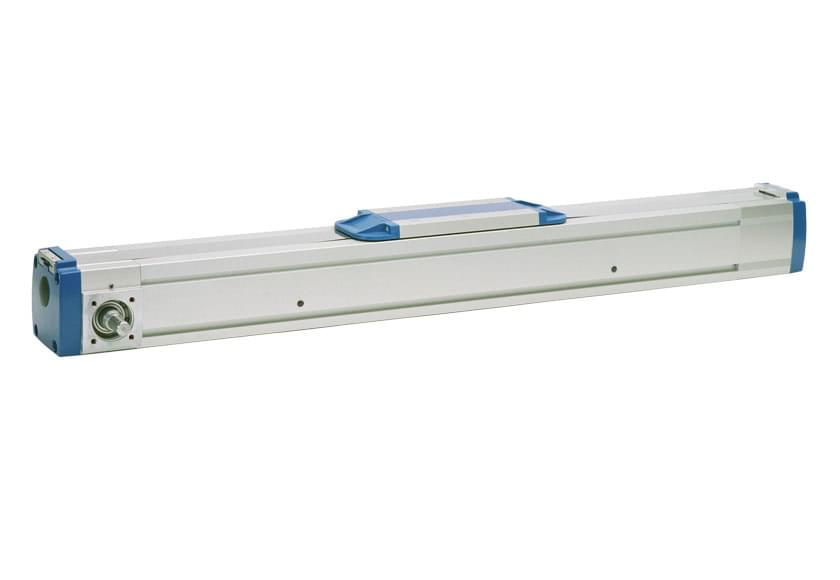

Linear Units with Belt Drive and Slide Guide

Movopart

Typical applications are where low loads need to be moved at medium speed and high acceleration at low cost. These units are suited to harsh environments. Typical examples are for machines in the food, chemical, paper and wood working industry, in materials handling, cutting, scanning and printing applications.

Technical Presentation

Cover band
The self-adjusting magnetically sealed stainless steel cover band protects the unit from the penetration of dirt, dust and liquids.

Environmental protection
The unit operates in harsh environments, but is also available in wash down or chemically protected versions for the toughest environments.

Belt drive
The belt runs on the inside of the profile and can easily be re-tensioned without removing the load from the carriage.

Prism slide guides
The patented self aligning prism slide guides are accurate, durable and resistant to vibrations and shock loads.
