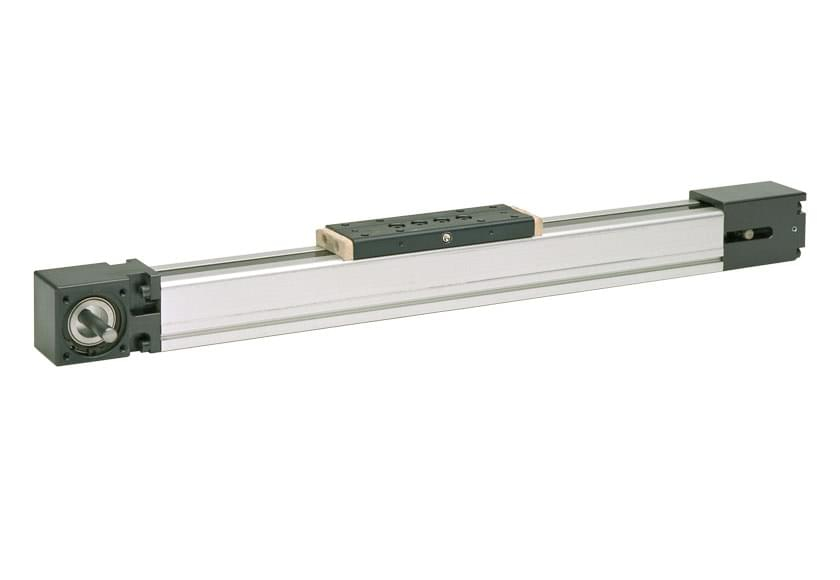

Linear Units with Belt Drive and Ball Guide

SpeedLine, Movopart, ForceLine, Microstage

Typical applications are where medium accuracy, speed and load capability is required. Typical examples are cutting, welding, glueing and assembly operations and in materials handling applications such as palletizing and pick and place operations.

Technical Presentation

Cover band
The patented self-adjusting cover band protects the interior of the unit from the penetration of dirt, dust and liquids.

Central lubrication
One central lubrication point on the carriage services the entire unit resulting in a minimum maintenance required.

Belt drive
The belt is protected from the outside ensuring long, accurate and safe operation.

Ball guides
Integrated patented ball guides with hardened steel tracks for optimum performance.
